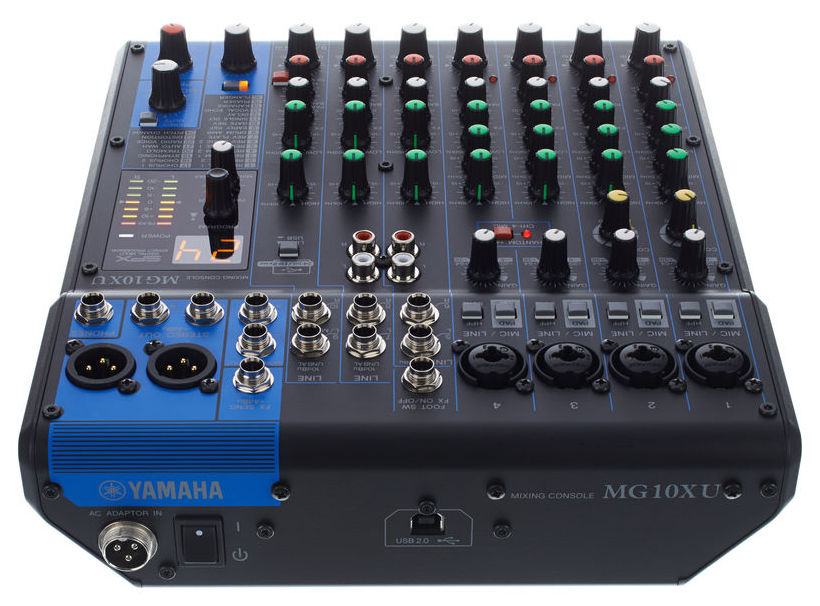

Yamaha MG-10XU Mezcladora análoga de 10 canales con efectos y USB

Mixing capability On-board processors SPX algorithm: 24 programs

I/O Phantom power +48 V

Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit

Input Channels MonoMIC/LINE 4

StereoLINE 3

Output Channels STEREO OUT 2

MONITOR OUT 1

PHONES 1

AUX SEND 1

Bus Stereo: 1, AUXFX: 1

Input Channel Function PAD 26 dB (Mono)

HPF 80 Hz, 12 dB/oct (Mono)

COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec

EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving

EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking

EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving

PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping

Level Meter 2 x 7 -segment LED meter PEAK, +10, +6, 0, -6, -10, -20 dB
